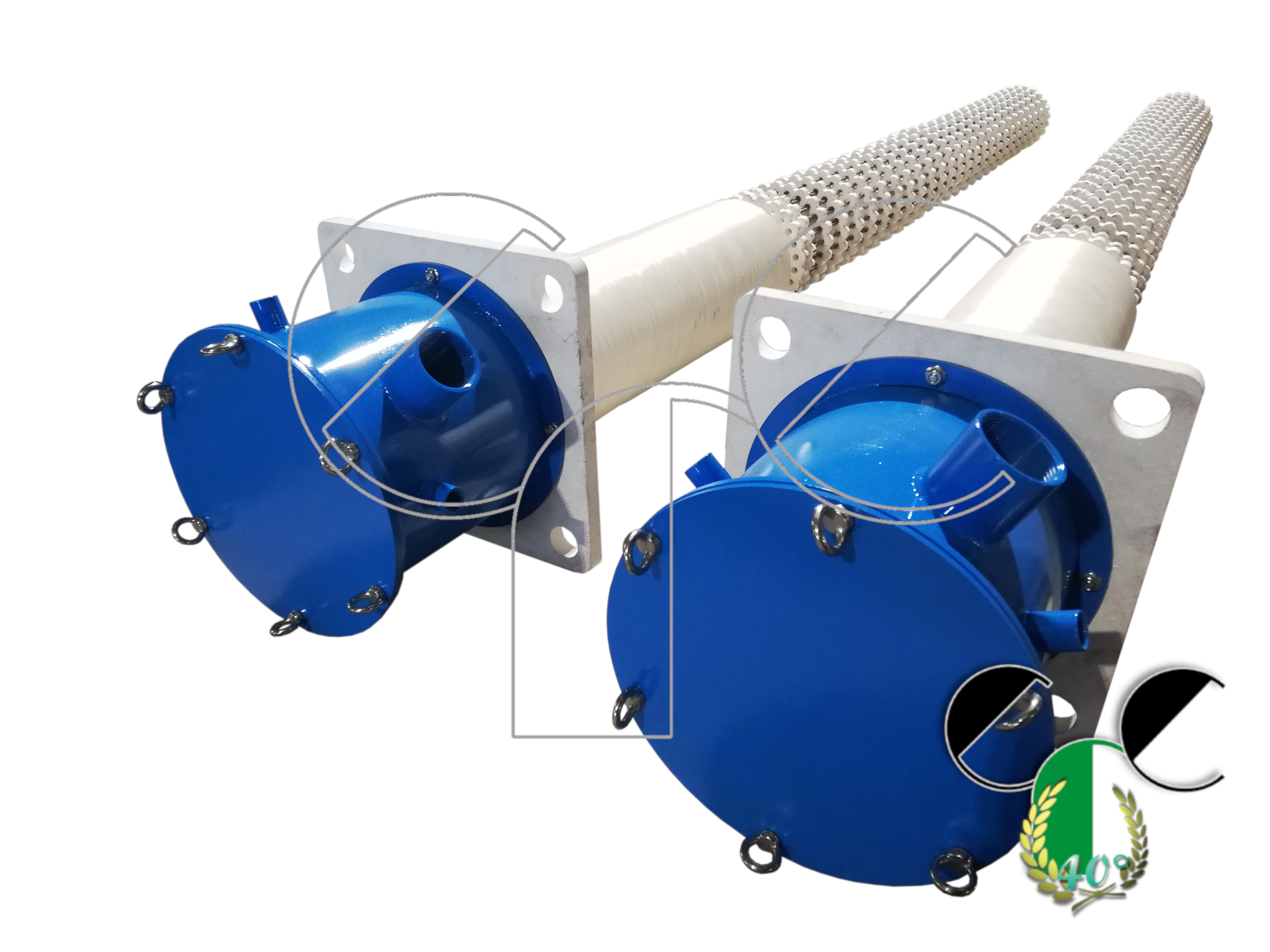

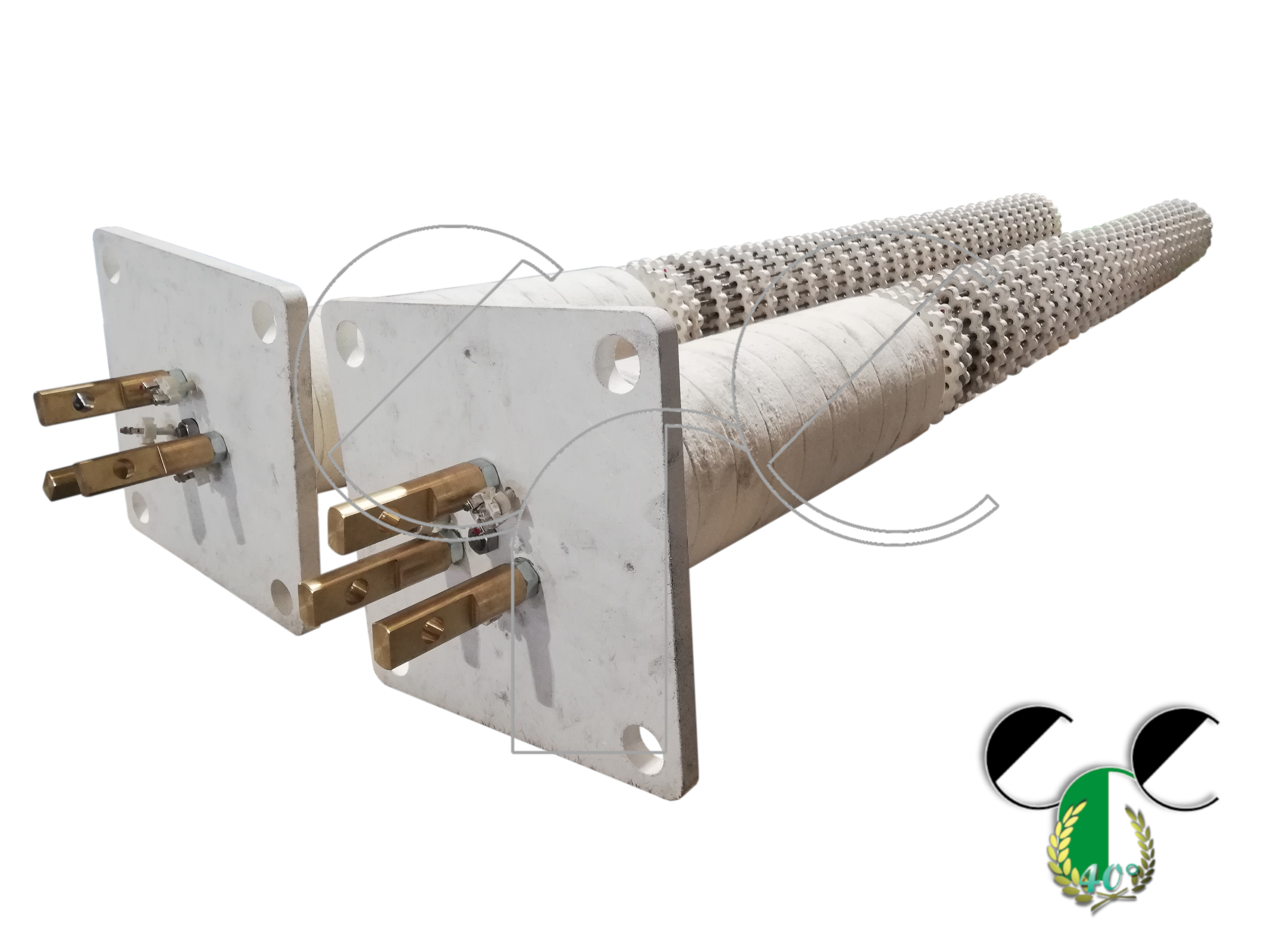

Heating element for THREE-PHASE radiant tube.

ADVANTAGES: The three-phase connection system allows for greater power to be reached, up to 100 KW V400 with lower amps, while maintaining the same dimensions as the single-phase.

USE: They are resistors which are widely used, for example, for the reduction of pollutants in the fumes deriving from heat treatment processes.

Including no. 3 K-type thermocouples each for each phase.

WORKING TEMPERATURE: MAX 1200°C

Standard power, size and shape or as specified by the customer.

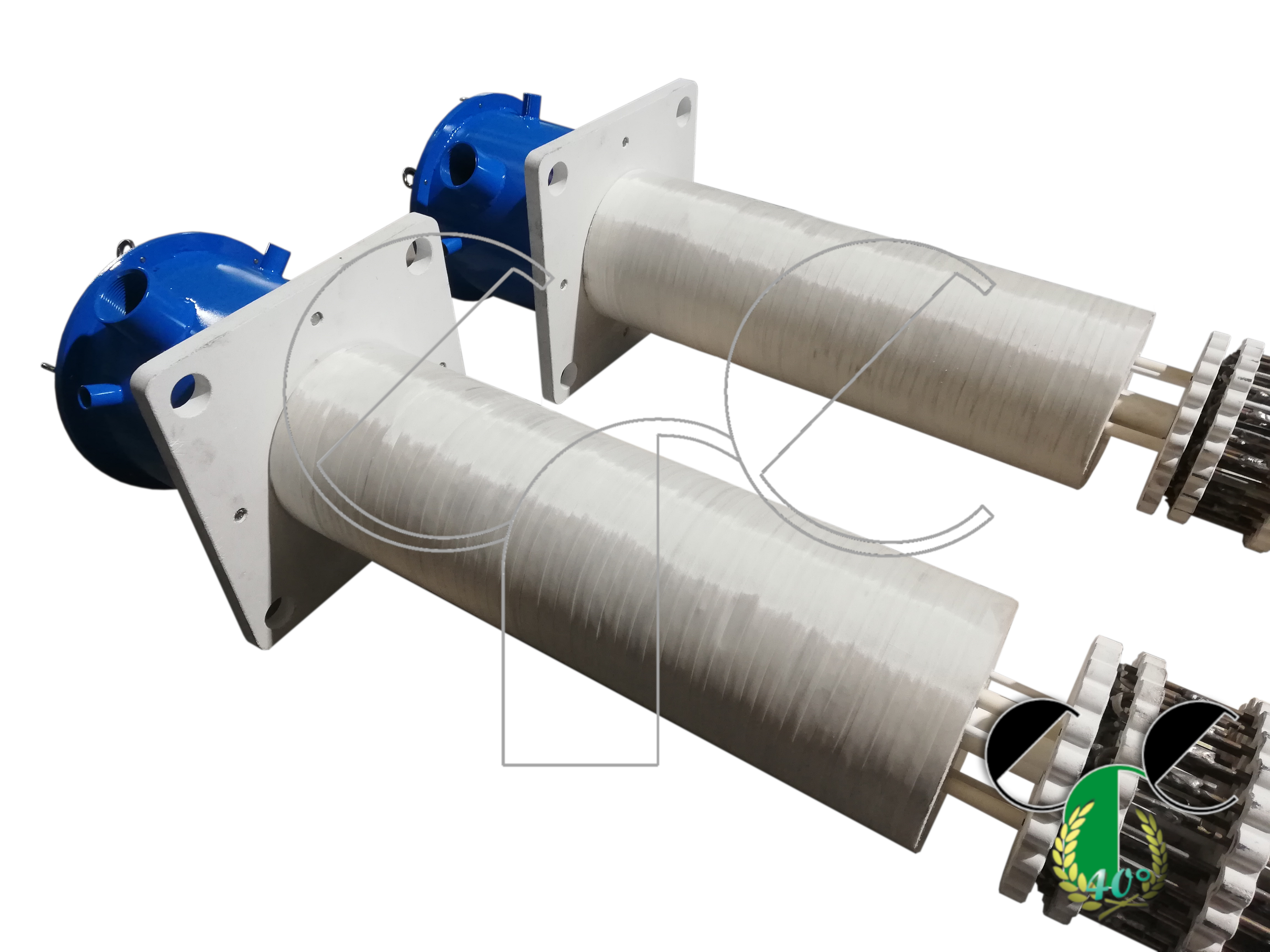

Insulation with REFRACTORY FIBRO-CERAMIC technical material.

Heating with resistive filament KA1* on ceramic supports.

________________________________

* Iron-chromium-aluminium alloy (FeCrAl). DIAMETER and TYPE defined according to the type of use.
